Saved View Manager Settings


Below we will describe how to change MP Saved View Manager settings. Activate «Settings» -> «Change Settings» menu to see the Settings dialog.

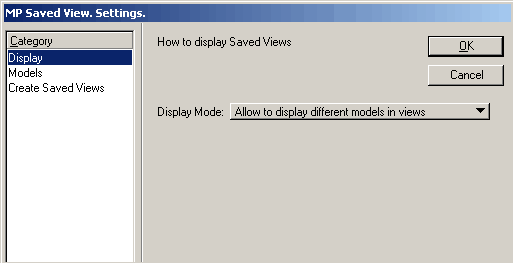

Display

    "Display Mode" option changes behavior of application when user selects Saved View from the list of Saved Views. The following modes are available:

    Mode

    How it works

    Allow to display different models in views

    The Default. When Saved View of the current model or reference model was selected, then model of the View (defined by “View Number” option) is not changed. When Saved View of non-active models of the current file is activated, then this model becomes active in the View.

    Do not switch models of views

    Selecting of Saved View does not activates any models in any views. Selecting of Saved Views only show picture of Saved View in the View.

    Switch to the model of Saved View

    When user selects Saved View from saved view list, then Saved View Selector completely activates model of Saved View (open file and model of saved view).

    Switch to the model of Saved View (not for References)

    When user selects Saved View from saved view list, then Saved View Selector completely activates model of Saved View (open file and model of saved view). This does not work for reference models – their Saved Views are shown in the current model.



Models

    Here you can set models, which will be searched for Saved View when Saved View Selector will build Saved View list.

    • “Current Model” – include Saved Views from the current model to Saved View list
    • “Master File Models …” – include Saved Views from non-active models of the current file to Saved View list
    • “References” – include Saved Views from reference models to Saved View list

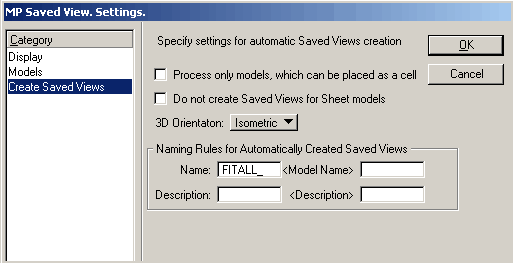

Create Saved Views

    The page allows to configure Bulk Saved Views Creation:

    • Process only models, which can be placed as a cell – process only those models, which can be placed as cells
    • Do not create Saved Views for Sheet models – do not process Sheet models
    • 3D Orientation – orientation for 3D models
    • Naming Rules for Automatically Created Saved Views – set prefixes and suffixes for names and descriptions of created in bulk mode Saved Views
